OGM-CBF: Occupancy Grid Map-based Control Barrier Function

Tampere University

OGM-CBF guarantees safe control of mobile robots in unknown environments by incorporating memory of out-of-view obstacles into the Control Barrier Function framework.

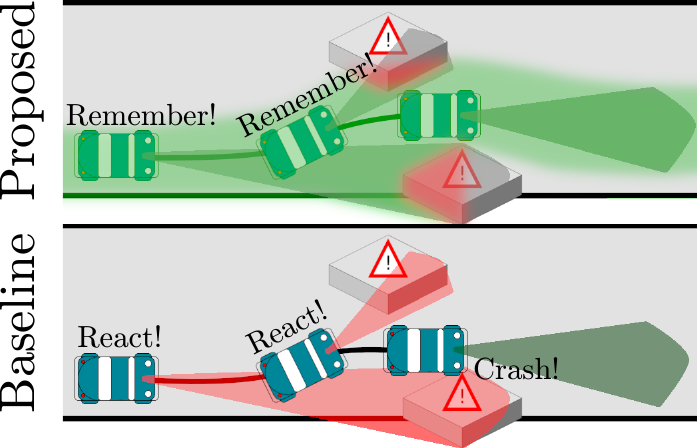

The proposed approach exploits a grid map to retain the memory of an obstacle observed a priori, and thus can safely avoid it even after the obstacle leaves the Field of View (FoV).

Figure from the OGM-CBF paper. © 2026 IEEE. Personal use is permitted; permission from IEEE is required for all other uses.

Abstract

Safe control in unknown environments is a key challenge in mobile robotics. Control Barrier Functions (CBFs) provide a principled framework for guaranteeing safety constraint satisfaction. State-of-the-art CBF approaches assume either known environments with predefined obstacles, or rely only on obstacles currently within the robot’s Field of View (FoV). However, practical robots in a priori unknown environments can observe their surroundings only partially, and therefore can violate safety due to limited FoV, sensor range, or occlusion. This paper incorporates the memory of a priori observed obstacles of arbitrary shape that have left the robot's FoV into the CBF safe control. In particular, we couple the Signed Distance Function (SDF)-based CBF formulation to an occupancy grid map built online during the system's operation. Furthermore, the lack of steering authority induced by the SDF gradient degeneracy when facing obstacles head-on is addressed by employing image pyramid over the SDF, yielding a multi-level CBF. The efficacy of the proposed approach is evaluated against memory unaware baselines in the CARLA simulator. Moreover, we demonstrate the generalizability of the proposed approach in real deployments on a small warehouse robot and a large, articulated frame steering autonomous wheel loader.

Real-World Deployments

We validate OGM-CBF on physical robotic platforms in representative real-world scenarios.

Industrial Mobile Robot: Concave Scenario

Industrial Mobile Robot: Cluttered Scenario

Autonomous Wheel Loader

Acknowledgements

This work has been supported by Finland's Ministry of Education and Culture's Doctoral Education Pilot under Decision No. VN/3137/2024-OKM-6, and by the European Union's Horizon Europe programme under Grants 101095947 and 101136408.

BibTeX

@article{raja2026ogmcbf,
  title={{OGM-CBF}: {O}ccupancy Grid Map-based Control Barrier Function for Safe Mobile Robot Control with Memory of out of View Obstacles},
  author={Raja, Golnaz and Prágr, Miloš and Kärki, Topi Reino Johannes and Mökkönen, Teemu and Ghabcheloo, Reza},
  journal={arXiv preprint arXiv:2405.10703},
  year={2026},
  doi={10.48550/arXiv.2405.10703},
}
